Venturis for ozone generator

Enaly Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow.

Venturis for ozone generator Specifications:

Model Name Air inlet Dia. Length Water Out/inlet Dia. Water Volume

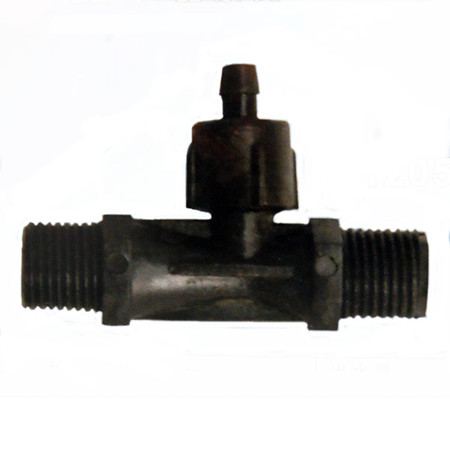

A12057 1/8″ 57mm 1/5″ ~0.4 ton
A25100 1/4″ 100mm 1/2″ 0.2-1 ton
A25152  1/4″ 152mm 3/4″ 1-3 ton

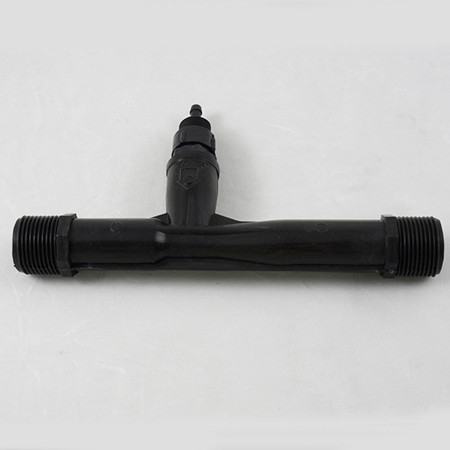

A32235 1/2″ 235mm 1″ 3-10 ton

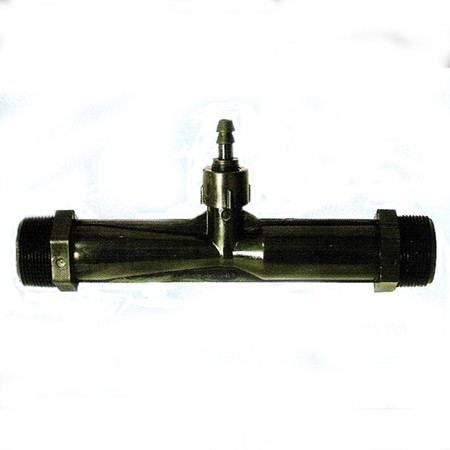

A48275 1/2″ 275mm 1.5″ 10-25 ton
A58295  1.25″ 295mm 2″ 25-50 ton
A110660 2″ 660mm 4″ 60-100 ton

Venturis for ozone generator Features:

Anti-ozone material PVDF

Images of Venturis for ozone generator:
