Ozonator Generator ZO-30N Most integrated and high Powerful

Ozonator Generator ZO-30N  is one of our most basic units used for different applications. It has been used as a functional unit for dish sterilizers and commercial ozone generators for water treatment. We believe that a wider application of this unit could be found by applying it to spas, baths, small pools and anywhere small volume of water sterilizing is necessary. This is a highly integrated corona discharge three in one unit with ozone tube, ozone power and Air Pump in one plastic case.

It is a very compact design but is a very powerful and enduring product.

Specifications of ZO-30N Ozonator Generator:

Model Name: ZO-30N

Ozone output: 100mg/hr ( without connection of air dryer )

Max Ozone output: 200mg/hr ( with connection of air dryer )

Pump Output: 1 – 2 litres per minute

Max. Pump pressure: 3/4psi ( about 0.5 meter deepth of water )

Outlet port dimensions: 6 millimetres

Inlet port dimensions: 6 millimetres

Current:30-35mA (AC220-240V)/60-70mA (AC110-120V)

Power Consumption: 7 Watts

Size: 190mmX100mmX50mm (LWH)

Net Weight: 0.5 kilograms

Power Cable: 1-1.5m in length

Case: Plastic

CE marked

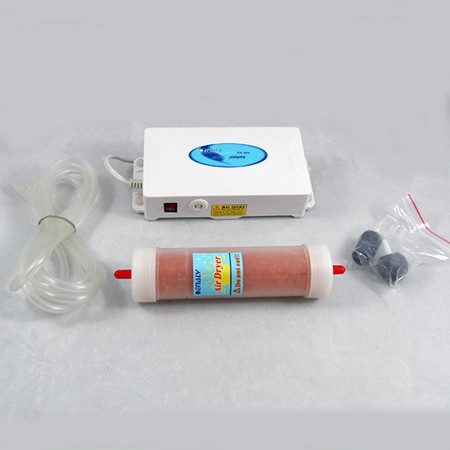

Accessories: 2 sets of hose & diffuser stone

Note: To users in England and the countries where use UK standard power plugs: We do not have UK standards power plugs. Users in these countries will get products with standard EU power plugs.

Features of ZO-30N Ozonator Generator:

1. Low power consumption (7W) with high ozone output.

2. Compact design with built in Air Pump, buy and use instantly.

3. Able to connect with Air Dryer through air inlet.

4. Come up with 2 sets of hoses and diffuser stones.

5. Long life performance.

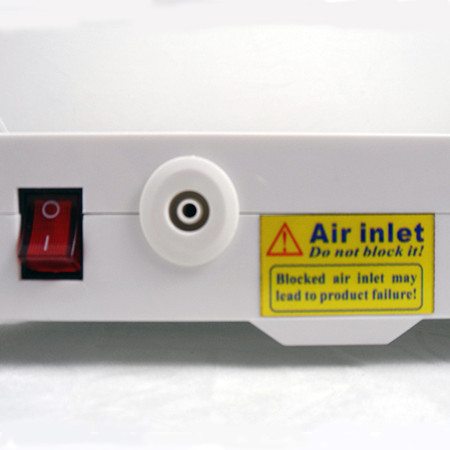

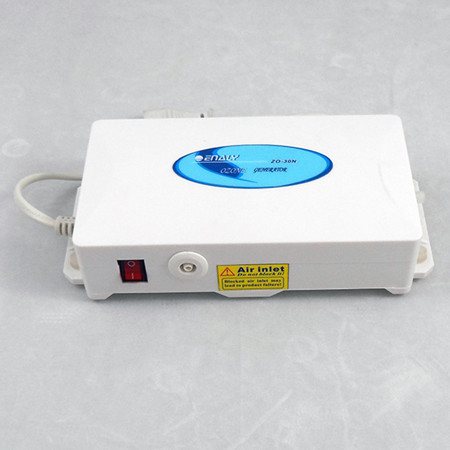

Images of ZO-30N Ozonator Generator:
